Pre-Wired & Easy Install
Stop wiring on site. We include pre-wired disconnect switches and 1:1 templates.
Pre-wired routing · Cleaner installs · Fewer on-site hours
UL Listed Components
Samsung/Mean Well components. Fully compliant with US/Canada electric codes.
UL/NEC-ready · Permit pack support · Shop drawings
Safe-Crate Shipping
Reinforced wooden crates ensure your sign arrives intact. Blind drop-shipping available.
Free mockup · Build plan · Clear timelines
3-Year Warranty
We stand behind our quality. Commercial-grade materials with clear warranty terms.
5-year structure · 3-year electrical · Quality checks
Why Wholesale Buyers Switch to 4–7 working days
Wholesale isn’t just about price. It’s about labor hours, callbacks, and getting through permitting without surprises.
Key outcomes
- Reduce on-site wiring complexity with pre-assembled, pre-wired letter sets. Many standard installs can be completed in a few hours, depending on scope and site conditions.
- Lower total labor cost by minimizing field assembly and rework.
- Keep builds consistent across multiple locations with standardized specs and documented outputs.
Risk reduction
- Get wiring diagrams and layout guidance to support permitting and inspection workflows.
- Rely on responsive US-based support when your installer has a question on site.
Front-Lit Channel Letters : Construction, Options, and Use Cases
- Retail & Franchise Storefronts: consistent branding for multi-location rollouts
- Strip Malls & Shopping Plazas: high contrast visibility among neighboring tenants
- Restaurants & Dining Chains: bright, inviting signage day and night
- Commercial Buildings: large-scale lettering on raceways or direct-to-facade mounts
- High-Rise Identification: long-distance readability for names & corporate signage
Configuration options
- Letter height: 6″ to 36″ standard ranges, plus custom sizing
- Return depth: 3″, 4″, 5″ typical (deeper options available)
- Face: translucent acrylic in custom colors
- Return finish: painted or powder-coated aluminum
- Lighting: 12V or 24V LED modules (application-dependent)
- Mounting: flush mount (stud) or raceway mount
What Front-Lit Channel Letters means
Commercial Sign Size Visualizer
Estimated Sign Width:
What’s Included in Your Channel Letter Package
- Pre-assembled front-lit channel letters (labeled per layout)
- LED modules installed and wired per design
- Power supplies (as specified) and connection guidance
- Mounting pattern/installation template
- Wiring diagram and placement guide
- Optional: raceway enclosure (if selected)
- Optional: installation hardware kit (if provided)
Front-Lit Channel Letters Specs (Wholesale)
Technical Specs (Commercial-Grade)
There are three common professional installation methods. All keep fasteners hidden for a clean, polished finish.
- Stud Mount (Most Common): Each letter mounts with threaded studs using a template.
- Raceway/Wireway Mount (Fastest Labor-Saver): Letters arrive pre-mounted; wiring is concealed inside the raceway.
- Backer Panel Mount (Clean & Consistent): Great for uneven surfaces and multi-tenant facades.
| Parameter | Technical Specification (US Standard) |
|---|---|
| Face Material | 3/16" (5mm) Acrylic (Plexiglas® / Chemcast®) - UV Stable |
| Return (Side) | 0.040" Aluminum Coil (Pre-finished rust-proof) |
| Trim Cap | 1" Jewelite® Trim Cap (Mechanically bonded to face) |
| Back Material | 0.040" Aluminum or 3mm ACM (Aluminum Composite) |
| Depth | Standard 5" (127mm) or Shallow 3" (76mm) |
| Illumination | Samsung™ / Mean Well™ LED Modules (6500K Pure White) |
| Power Supply | 12V DC Mean Well™ Driver (UL Class 2 Listed) |
| Waterproof | IP67 Rated (Outdoor Ready with Weep Holes) |
| Certifications | UL 48 Listed & NEC Compliant |
Install Video
Code-Compliant & Permit-Ready.
(UL 48 / NEC)
Don’t let inspections delay your opening. Our signs are UL 48 Listed and pre-wired to NEC standards. We provide the exact shop drawings and electrical load specifications your city needs to approve your permit faster.
- UL Listed Labels applied on every sign.
- Engineer-Ready Drawings included.
- Pre-wired Raceways for instant NEC compliance.
- Documentation support aligned with common sign permit submittals.
| Item | Why it matters | Included / available | Notes |
|---|---|---|---|
| UL 48 listed components | Inspection and safety | Varies by configuration | Depends on configuration |
| NEC Article 600 awareness | Electrical code context | [Yes/No] | Local AHJ determines requirements |
| Raceway mounting option | Cleaner wiring, fewer penetrations | [Yes/No] | Often helpful for permitting |
| Permit documentation support | Faster submittals | [Yes/No] | Scope varies by project |
Stop Overpaying for Storefront Signs.
Pre-assembled, permit-ready channel letters built for real US installs.
Get My Free Mockup & Quote✔ Send your logo + target size · ✔ Get a free mockup & quote in 2 hours

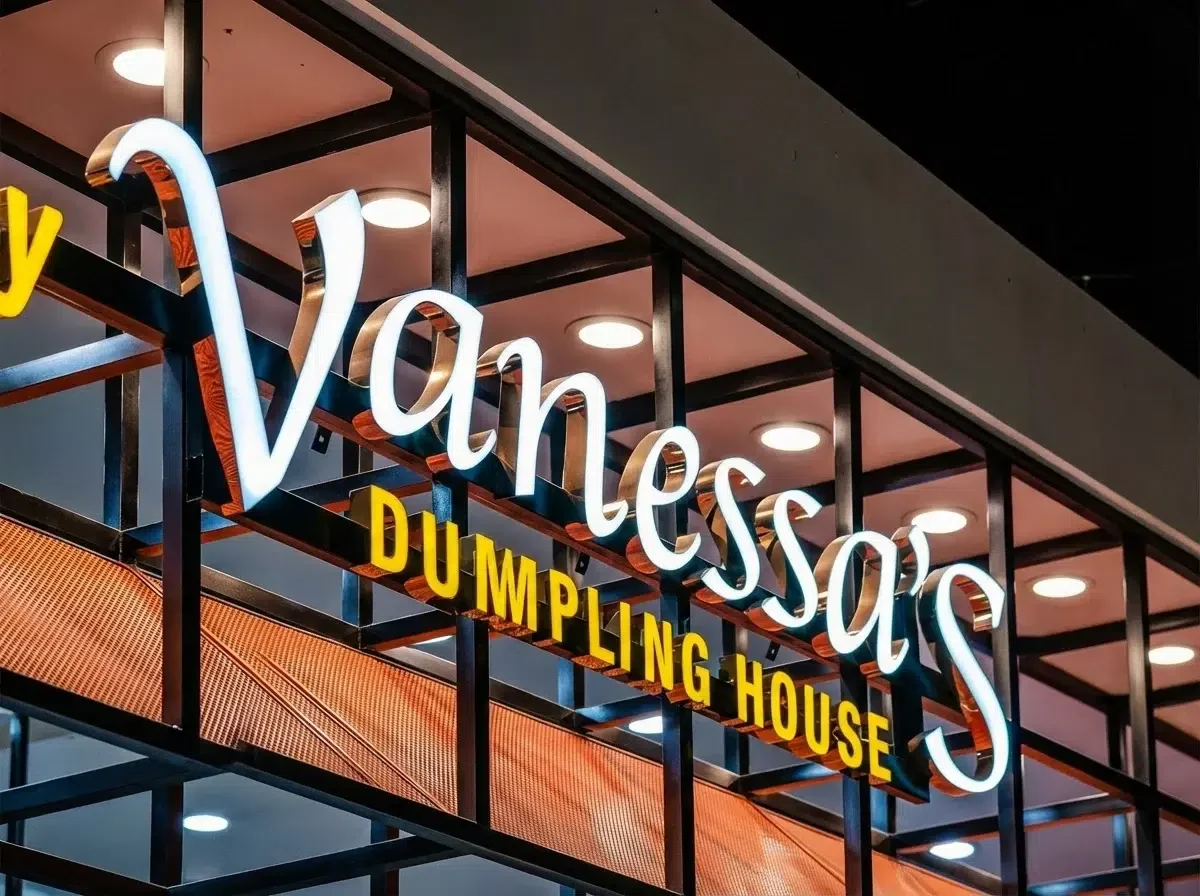

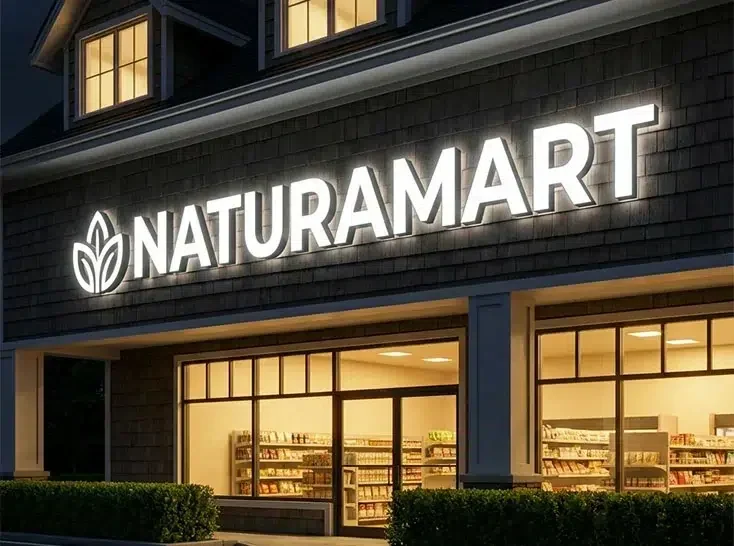

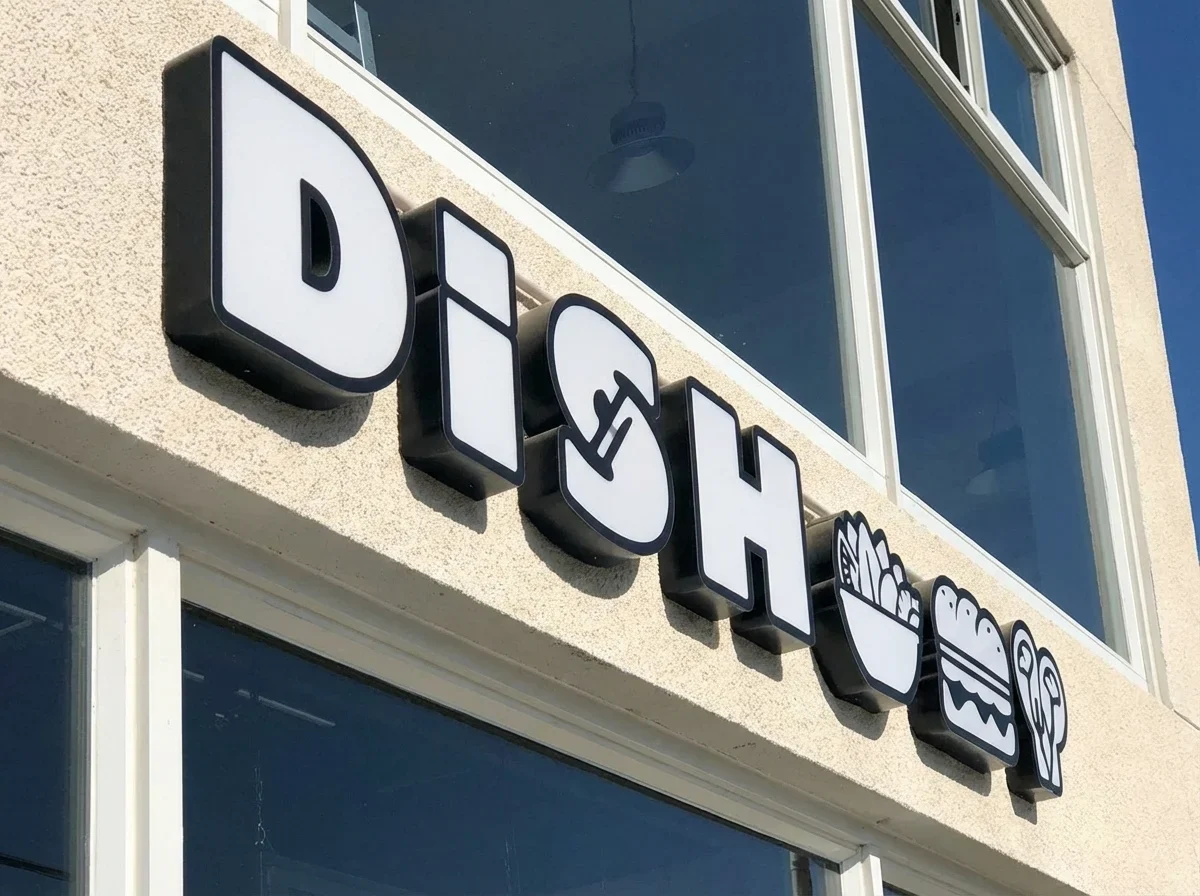

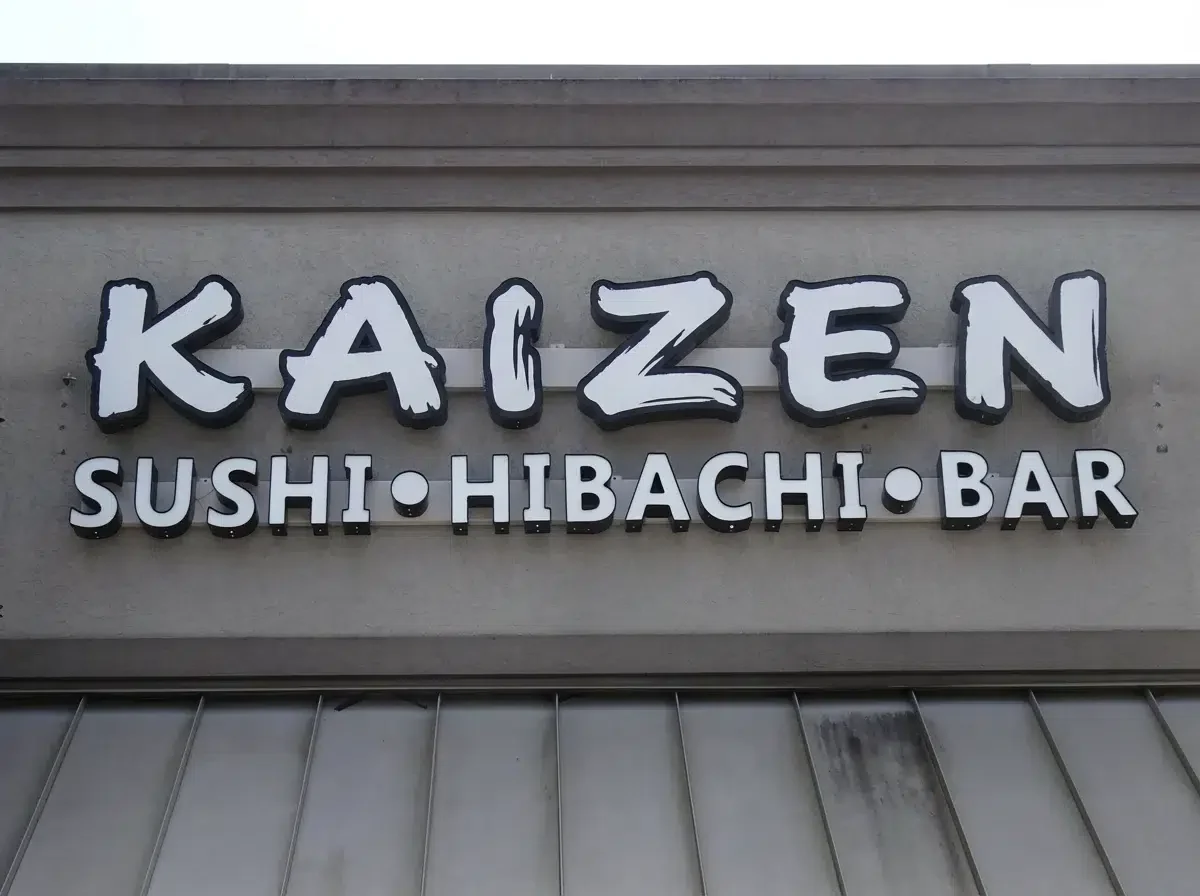

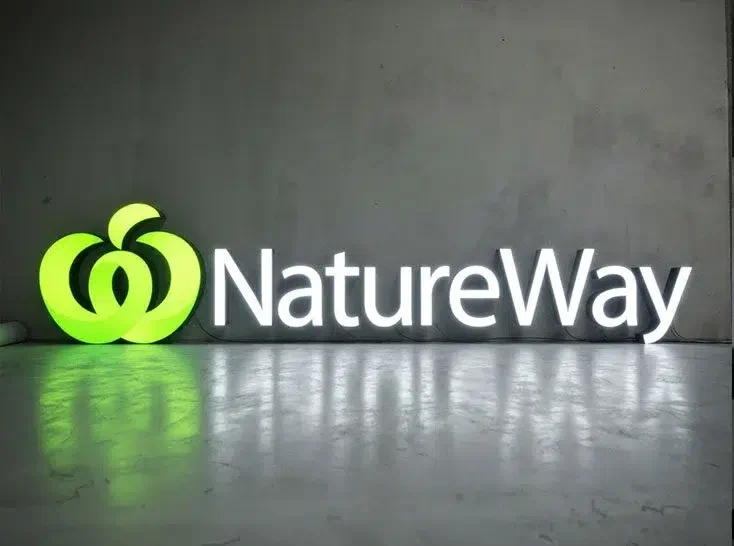

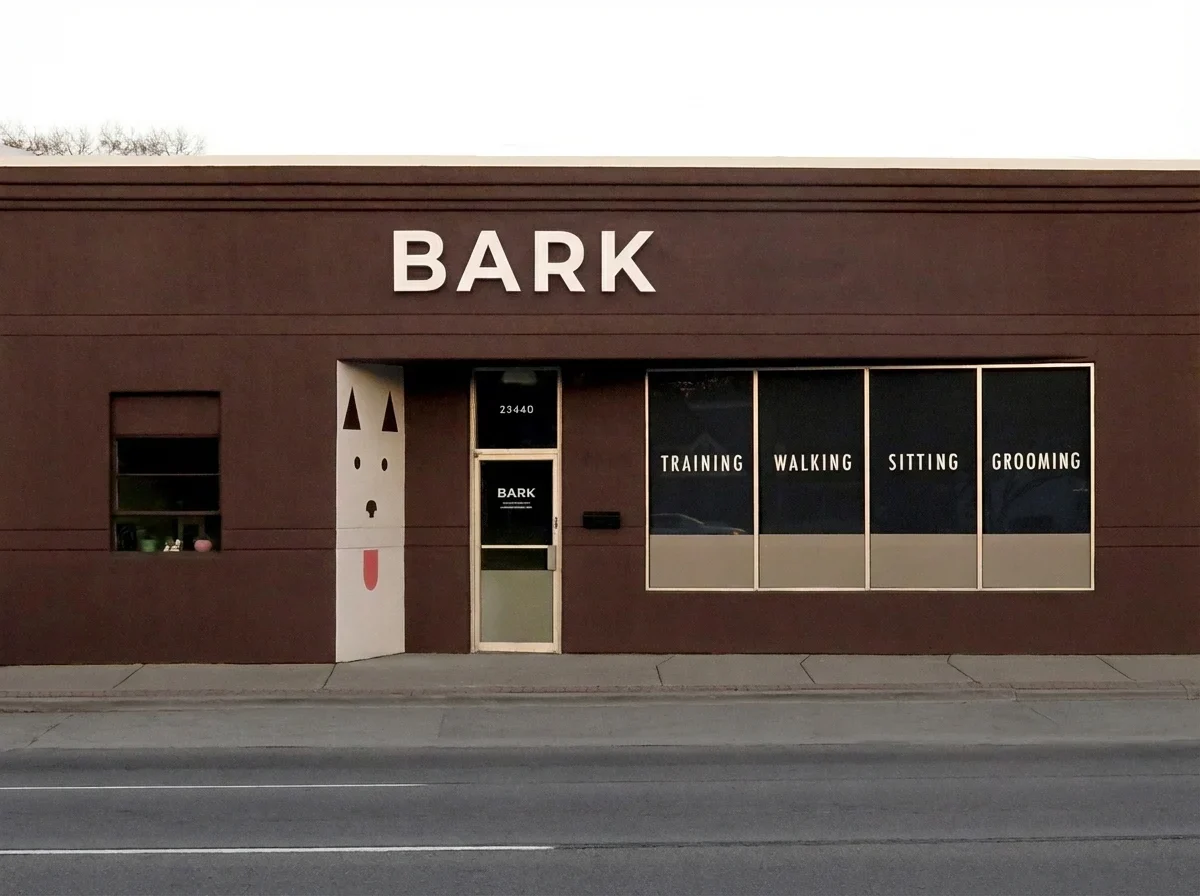

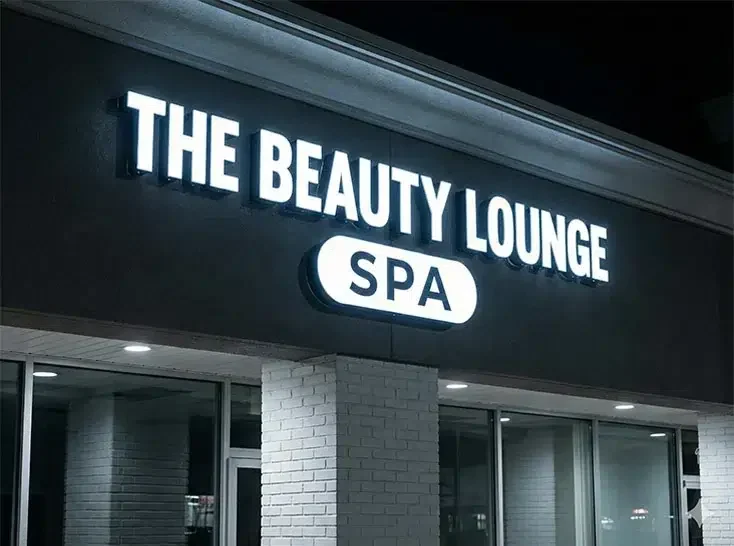

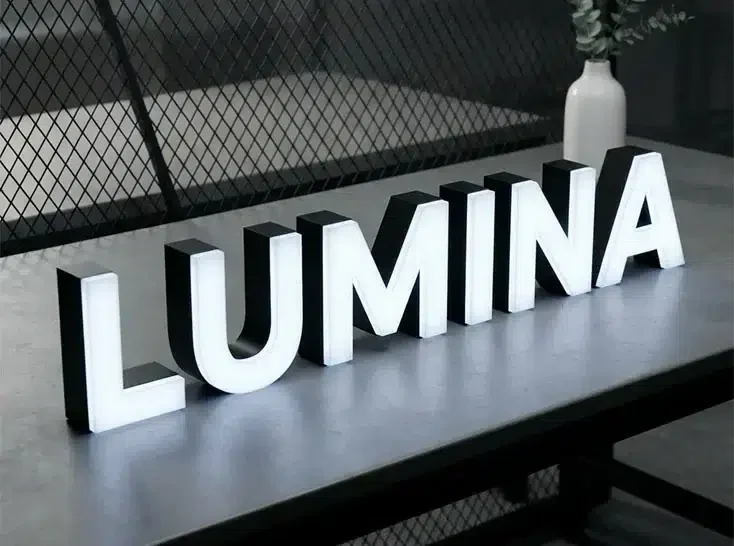

Recent Front-Lit Channel Letters Projects
